Standard Grinding Cycles And Multi-Steps Graphic
Inner through hole

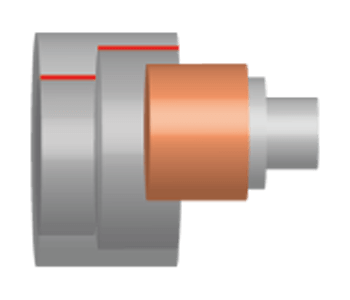

2 Step straight hole
Inner through hole + outer end-face (gear tip)
Inner blind hole + Inner end-face
Inner taper

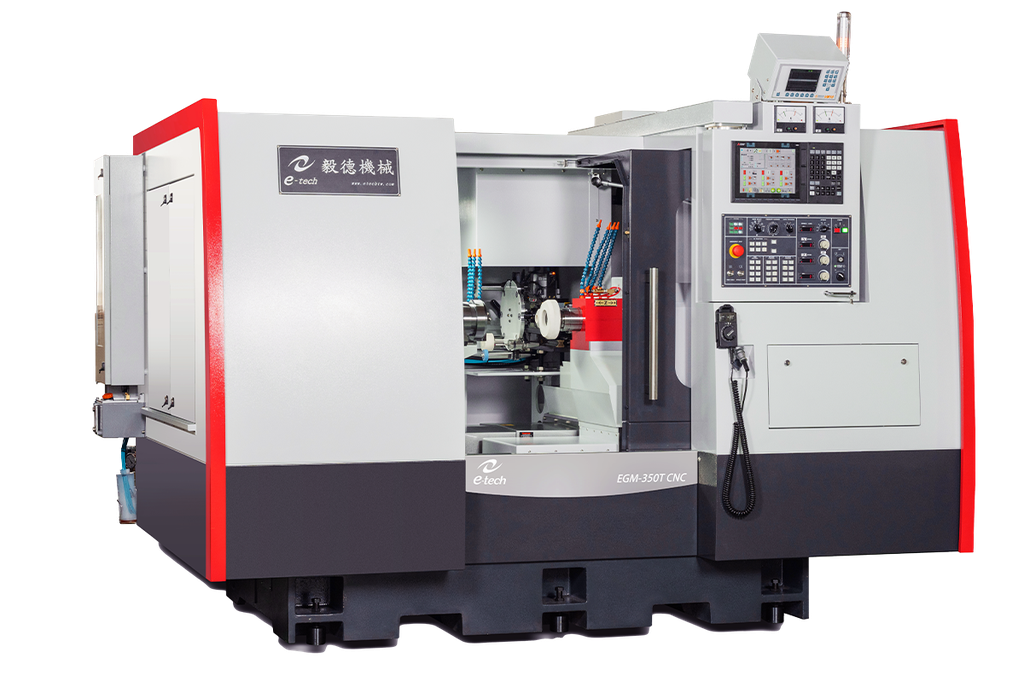

Multi-process in one-stop (EGM-350T)
Inner blind hole + ID chamer
Inner radius groovin
Inner through hole + Inner radius
Multi-step grinding
Profile grinding
Inner diameter + End surface
Machine Design Feature
1
The spindle we choose is BBT30 built-in type ATC spindle with 7.5kw and 30,000RPM. The tool magazine is driven by precision hydraulic slide, and can be equipped up to 8 tools in max., according to the size of the wheel.
2
Complete one piece cartridge spindle can avoid the eccentricity of spindle housing and reduces the heat increase for spindle life.
3
Spindle driven by servo motor offers optimum speed and torque performance.
4
Low-gravity base structure, with slant bed design for better coolant draining and grinding swarf removal.
Applications
Explore by industry to discover which types of workpieces are supported by e-tech’s grinding solutions.
Grinding Sample
Specification
| EGM-350TCNC |
|
| Max. Grinding ID | ∅300 mm |
| Max. Grinding OD | ∅400 mm |
| Swing Over Workhead | ∅500 mm |
| Max. Grinding Depth | 260 mm |
| Max. Weight of Workpiece | 50 kg |
| Max. Length of Workpiece | 300 mm |
| Max. Spindle Speed | 30000(Build-in-spindle) mm |
| Tool Holder | BBT30 |
| Tool Magazine Capacity | 8 Qty. |
Learn More About Our Product
For more detailed information, please download our catalog. The catalog includes standard accessories, optional accessories, and a comprehensive specification guide to help you better understand our product’s features!
