Description
- 3 color indicator light
- Swinging arm
1. Made of high intensity metal
2. Equipped with protection guard
3. Upper plate rolls out easily - Precision size controller
1. Accuracy indication : 0.001mm
2. Advanced dimension measurement with Magnescale controller
3. Immediately reflect the signal to PLC control and simultaneously indicate the size - Electrical cabinet
1. Vertical type enclosed electrical cabinet.
2. The CNC system is equipped with signal filtration device and transformer. - Upper and lower plate driven: Adjustable steer and speed (with the specified range)
Inner ring driven: Adjustable steer and speed (with the specified range.) - High intensity cast iron mechanism: Maintain fine static and dynamic mechanical
Applications
Explore by industry to discover which types of workpieces are supported by e-tech’s grinding solutions.
Grinding Sample
Specification

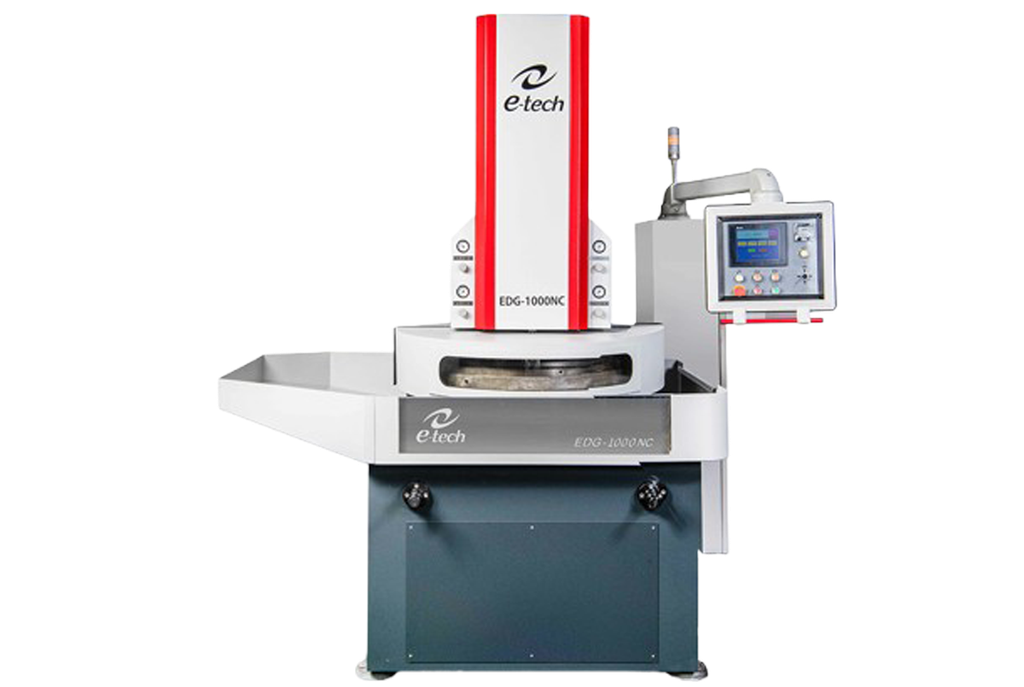

| EDG-700NC | EDG-1000NC | |
| Grinding Wheel Size (CBN Thickness 5mm) | 700x300x55 mm | 980x370x55 mm |
| Max. Workpiece Diameter | 180 mm | 330 mm |
| Upper Plate Motor Power | 5.5 mm | 7.5 mm |
| Upper Grinding Wheel Rotation Speed | 5~60 rpm | 5~50 rpm |
| Lower Plate Motor Power | 5.5 kw | 7.5 kw |
| Lower Grinding Wheel Rotation Speed | 5~60 rpm | 5~50 rpm |
| Inner Ring Motor Power | 2 kw | 3 kw |
| Inner Ring Rotation Speed | 5~40 rpm | 5~40 rpm |
| Equal Altitudes | 0.002 mm | 0.002 mm |
Learn More About Our Product
For more detailed information, please download our catalog. The catalog includes standard accessories, optional accessories, and a comprehensive specification guide to help you better understand our product’s features!
