Description
- CNC Controller
1. A selection of CNC control systems including Fanuc, Mitsubishi, Siemens, PC-BASE are available.

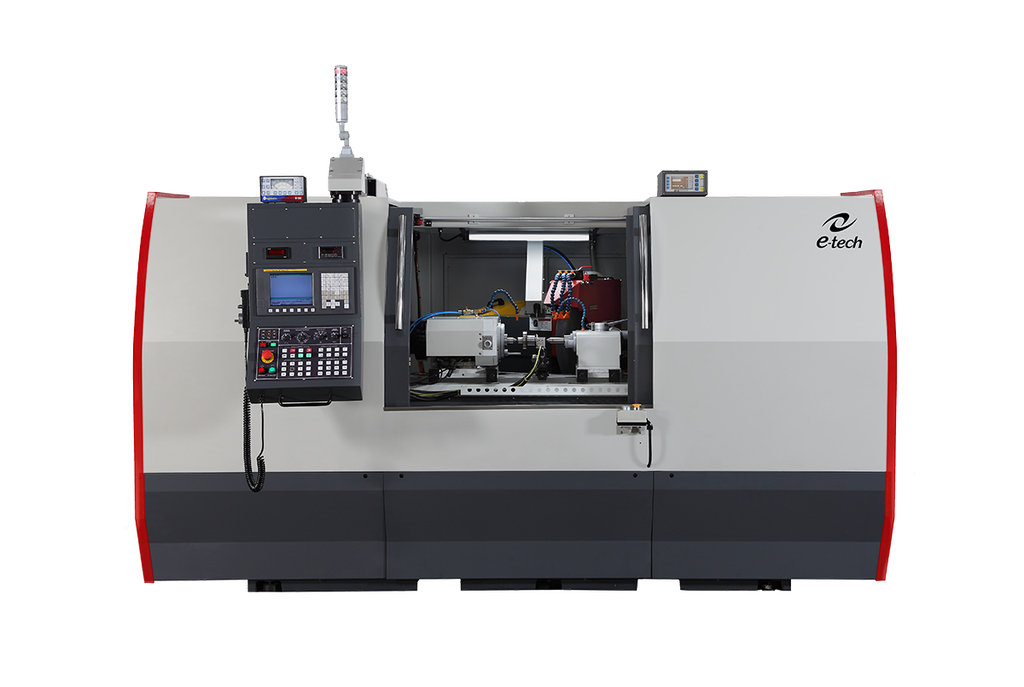

2. For small and medium size workpiece grinding operations, e-tech incorporates the iGrind graphic conversational programming software. - e-tech Machinery Inc. introduces EGP & EGA Series CNC cylindrical grinders with superb grinding capabilities and choice of control options. The customers’ requirements can be met with a choice of many machine options such as a touch probe, automatic sizing device, or swing down ID grinding attachment. The complete product line offers a wide range of between center distances and center heights in both plunge and angular wheelhead designs. Automation and turnkey solutions can be offered as optional equipment.
Grinding Cycle
Plunge grinding
Traverse grinding
Both sides feed
LHS feed
RHS feed
Plunge
Both sides feed
LHS feed
RHS feed
ID Grinding Cycle (using OD Grinding Cycle)
Plunge
Traverse
Applications
Explore by industry to discover which types of workpieces are supported by e-tech’s grinding solutions.
Grinding Sample
Specification
| EGA-3260CNC | EGA-32100CNC | EGA-32150CNC | EGA-32200CNC | EGA-3860CNC | EGA-38100CNC | EGA-38150CNC | EGA-38200CNC | |
| Swing Over Table | Ø320 mm | Ø320 mm | Ø320 mm | Ø320 mm | Ø380 mm | Ø380 mm | Ø380 mm | Ø380 mm |
| Distance Between Centers | 600 mm | 1000 mm | 1500 mm | 2000 mm | 600 mm | 1000 mm | 1500 mm | 2000 mm |
| Max. Grinding Diameter | Ø300 mm | Ø300 mm | Ø300 mm | Ø300 mm | Ø360 mm | Ø360 mm | Ø360 mm | Ø360 mm |
| Max. Grinding Length - Dresser on Workhead Side | 450 mm | 850 mm | 1350 mm | 1850 mm | 450 mm | 850 mm | 1350 mm | 1850 mm |
| Max. Grinding Length - Dresser on Tailstock Side (Opt.) | 600 mm | 1000 mm | 1500 mm | 2000 mm | 600 mm | 1000 mm | 1500 mm | 2000 mm |
| Max. Load Held Between Center | 150 kg | 150 kg | 150 kg | 250 kg | 150 kg | 150 kg | 150 kg | 250 kg |
| Center Distance Between Spindle and Slide Table | 162 mm | 162 mm | 162 mm | 162 mm | 192 mm | 192 mm | 192 mm | 192 mm |
Learn More About Our Product
For more detailed information, please download our catalog. The catalog includes standard accessories, optional accessories, and a comprehensive specification guide to help you better understand our product’s features!
