Machine Design Feature
1
NN bearing designed work spindle offers heavy duty load capacity, optimal rotation accuracy, and high rigidity. The servo motor drive offers steady speed and torque during the grinding operation. A positive air purge system keeps grinding swarf and coolant out of the work head, thus it prolongs its life.
2
The structure of cross slides is made of Meehanite cast iron. Its good thermostability compensates for temporary temperature changes. (Roller bearing and straight lead rail with Heidenhain linear scale).
3
NN bearing designed work spindle with high power motor provides enough power to outer diameter 510mm of wheel head, and improves processing efficiency. The angle of wheel head could be choose as 0 or 20 degree.
4
Oil-bath tail stock remains lubrication and makes the machine more durable. Tailstock taper adjustment feature makes workpiece setting faster.
5
Bath type of machine base is made in Meehanite cast iron, which experience natural aging and twice stress relief to make machine base itself more stable and durable.
Specification

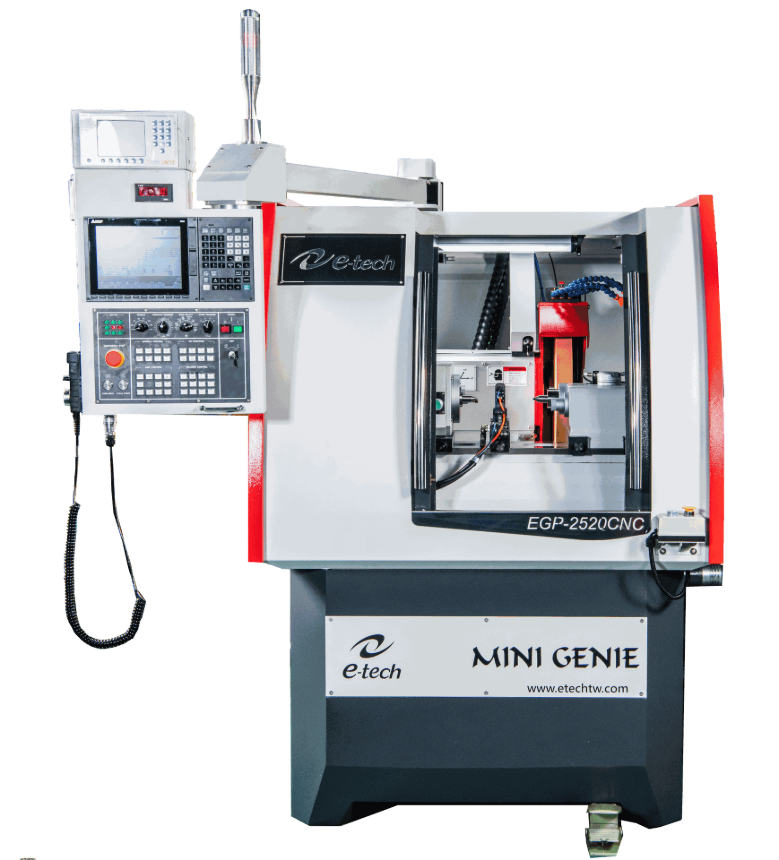

| EGP-2020CNC | EGP-2020ACNC | EGP-2520CNC | EGP-2520ACNC | |
| Swing Over Table | Ø210 mm | Ø210 mm | Ø250 mm | Ø250 mm |
| Distance Between Centers | 200 mm | 200 mm | 200 mm | 200 mm |
| Max. Grinding Diameter | Ø200 mm | Ø200 mm | Ø230 mm | Ø230 mm |
| Max. Load Held Between Center | 20 kg | 20 kg | 20 kg | 20 kg |
| Center Distance Between Spindle and Slide Table | 110 mm | 110 mm | 130 mm | 130 mm |
